Dimensional Schematics

Architectural Floor Plan Repository

Tested and measured floor plans engineered to eradicate circulation dead zones in European urban housing typologies.

Architectural blueprint showing 32sqm studio floor plan with furniture circulation zones

Type: Studio

32.5m² Micro-Loft Plan

The Single-Corridor Central Core

Engineered for deep and narrow railroad apartments. Locates the wet bathroom core and kitchen along the blind party wall, opening the entire window facade for living and sleeping.

32.5m²

Total Area

94%

Efficiency

1:50

Scale

Vector DWG Available

Type: 1-Bed + Office

54.0m² Two-Bay Layout

The Pocket Enfilade Plan

Modernized historic enfilade design where sightlines stretch across all three primary rooms simultaneously, providing a perception of double the actual spatial volume.

54.0m²

Total Area

2 Balconies

Outdoor

1:50

Scale

Vector DWG Available

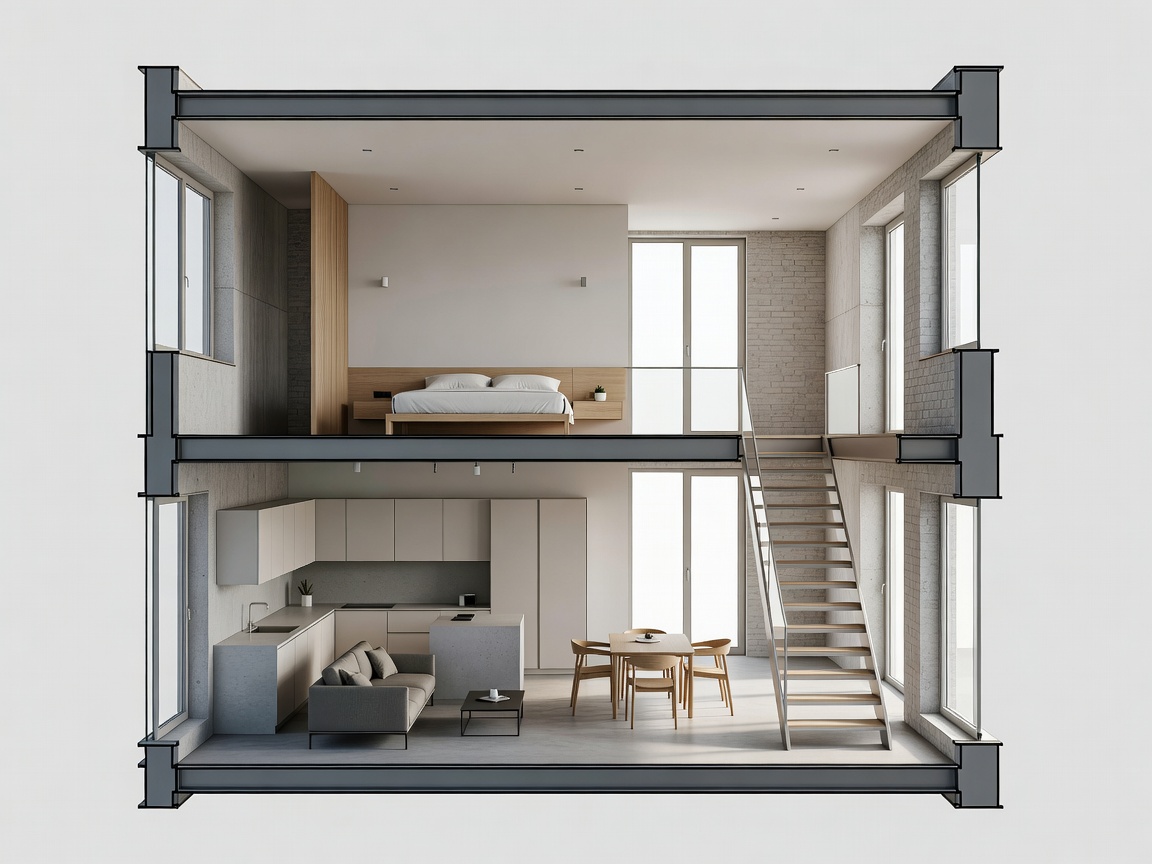

Architectural section diagram of high-ceiling mezzanine apartment

Type: Mezzanine 3D

45.0m² + 18m² Mezzanine

The Altbau Cantilever Section

For buildings with ceiling heights > 3.60m. Features a freestanding laser-cut steel mezzanine with integrated stair treads that double as deep bookshelves.

63.0m²

Usable Vol

3.85m

Clear Ht

1:25

Scale

Structural Calc Included
